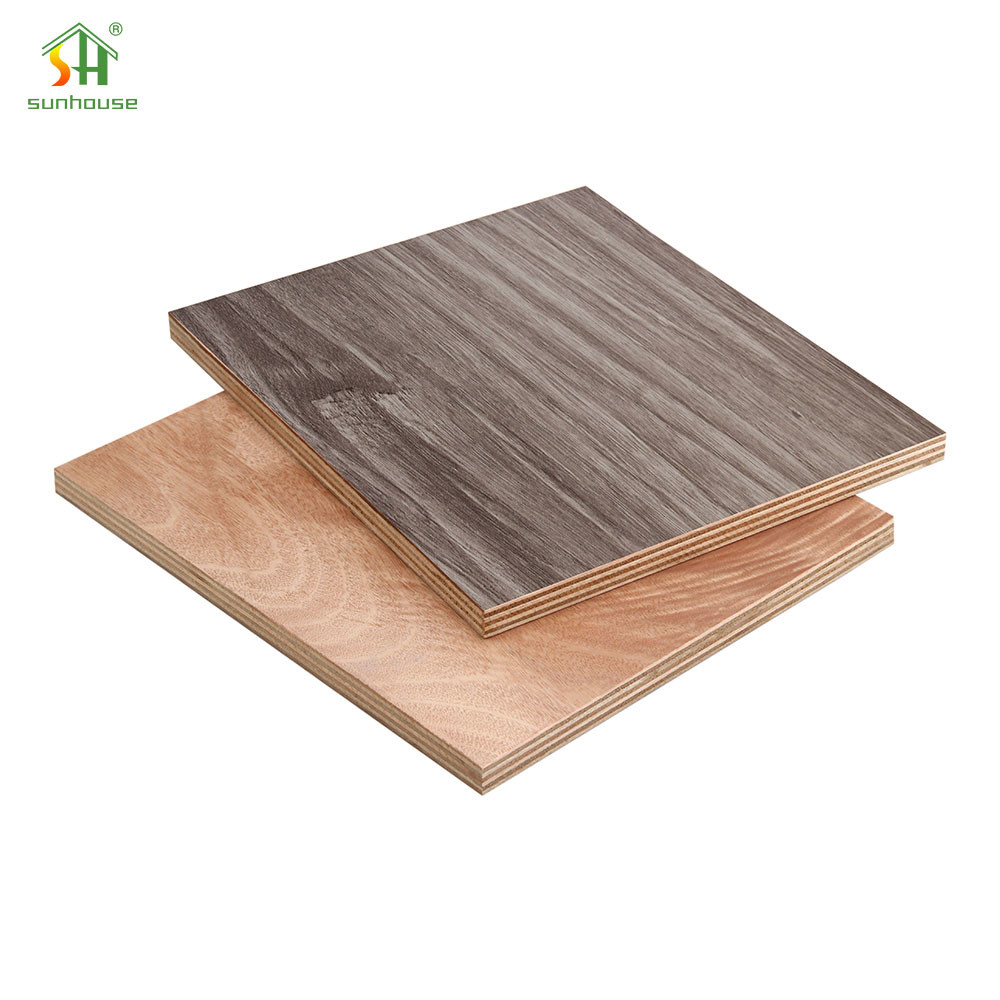

Eucalyptus Melamine Film Faced Plywood 12mm 4x8 For Building Construction

Name: Eucalyptus Melamine Film Faced Plywood 12mm 4x8 For Building Construction
Brand: Foshan Huiju Decoration Material Co. Ltd.
SKU: ply-05
Availability: InStock

Brand Name:	SUNHOUSE
Model Number:	ply-05
MOQ:	1000
Delivery Time:	15days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

guangdong, china

Certification:

Name:

Melamine Film Faced Plywood

Material:

Plywood

Thickness:

12mm

Surface Type:

Smooth, Textured

Functional Benefits:

Prevents Warping Under Heavy Loads, Resists Household Chemicals And UV Fading, Airtight Joins For Dustproof Storage, No Priming Or Sealing Required, Thermal Stability (-10°C To 60°C)

Product Features:

Eucalyptus Core, Melamine Surface, Precision Edges, Lightweight Design, Customizable Finishes

Product Description:

Premium Engineered Wood Panel For High-performance Interior Applications

Color:

Various Colors Available

Formaldehyde Emission:

E0, E1, E2

Packaging Details:

1220x2440mm/ 4x8ft

Highlight:

Melamine Film Faced Plywood

Melamine Faced Plywood 12mm 4x8

Melamine Faced Plywood Sheets 12mm

Product Description

High Quality Film Faced Plywood 4x8ft 12mm Building Construction Corrosion Resistance Eucalyptus Melamine Plywood

Product Description Of Melamine Plywood Board:

This film faced plywood is engineered for heavy-duty construction applications, combining a durable melamine-coated surface with a robust eucalyptus wood core. Designed in a standard 4x8ft size and 12mm thickness, it offers exceptional dimensional stability and load-bearing capacity, making it ideal for concrete formwork, structural frameworks, and industrial flooring systems. The phenolic film coating provides superior moisture resistance, ensuring longevity in humid environments and repeated use scenarios.

Product Features Of Melamine Plywood Board:

1. Triple-layered melamine film surface enhances scratch resistance and surface smoothness.

2. Cross-laminated eucalyptus core with 11-ply construction for uniform strength distribution.

3. BS 1088-certified waterproof phenolic resin adhesive bonding.

4. Pre-drilled installation holes along edges for rapid assembly (optional).

5. UV-treated film layer prevents yellowing under prolonged sunlight exposure.

Technical Specifications Of Melamine Plywood Board:

- Panel Size: 1220mm x 2440mm (4ft x 8ft).

- Core Material: Grade A Eucalyptus (97% heartwood content).

- Surface Coating: 220g/m² melamine-impregnated paper.

- Glue Type: WBP (Weather & Boil Proof) Phenolic Resin.

- Bending Strength: ≥30MPa (JIS A 5908 standard).

- Thermal Conductivity: 0.12 W/m·K.

- Repeated Usage Cycles: 15-20 times for concrete forming.

- Edge Sealing: Waterproof tape pre-applied on all four sides.

Application Scenarios Of Melamine Plywood Board :

- High-rise building concrete formwork systems.

- Bridge construction shuttering applications.

- Marine infrastructure projects (piers, docks).

- Industrial warehouse flooring substrates.

- Temporary road surfaces for heavy equipment.

- Exhibition stand structural panels.

This construction-grade plywood exceeds ASTM D5456 standards for structural composite lumber, featuring a unique 3-2-3 ply configuration that optimizes weight-to-strength ratio. The eucalyptus core's natural oil content enhances moisture resistance while the triple-layer film coating provides chemical resistance against concrete alkalinity (pH up to 13.5). Installation efficiency is improved through standardized sizing compatibility with global formwork systems, reducing on-site cutting waste by approximately 18%.
