SPC Click Flooring
Created with Pixso.

Professional SPC Click Flooring Structure Guide Rigid Core Vinyl Plank with UV Coating Wear Layer and IXPE Underlay

Professional SPC Click Flooring Structure Guide Rigid Core Vinyl Plank with UV Coating Wear Layer and IXPE Underlay

Brand Name: SUNHOUSE
Model Number: SPC-15
MOQ: 49
Price: $1.92
Payment Terms: T/T,L/C
Supply Ability: 3000000 Meter/Meters per Month
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO, CE
Thickness:
4.5mm
Material:
SPC, 100% Natural Real Wood
Surface Treatment:
UV Coating
Installation Type:
Click Lock System
Plank Width:
Medium Plank (5.1-6.9in)
Dimensions:
6''*36 6''*48 7''*48'' 9''*48'' 9''*60''
Brightness:
Matt/Semi Matt/Gloosy
Underfloor Heating:
20-30°C Surface Temperature
Edge Profile:
Micro Bevelled
Reaction To Fire:
Bf1-S1
Thermal Resistance:
0.038㎡K/W
Wear Resistance:
Group T
Slip Resistance:
R10 DS
Sound Absorption:
20db/21db
Light Stability:
≥6
Packaging Details:
1220x2440mm-12mm 880pcs=1 container
Supply Ability:
3000000 Meter/Meters per Month
Highlight:

SPC Click Flooring UV Coating

,

Rigid Core Vinyl Plank IXPE Underlay

,

SPC Click Flooring Wear Layer

Product Description

SPC Flooring Structure Explained: Understanding Every Layer Behind Rigid Core Vinyl Flooring

For professional flooring buyers, SPC flooring quality is not determined only by thickness or appearance. Different SPC products may look similar but have significant differences in core formulation, surface protection, locking precision and backing materials. Understanding the internal structure helps distributors, contractors and importers evaluate product performance before bulk purchasing.

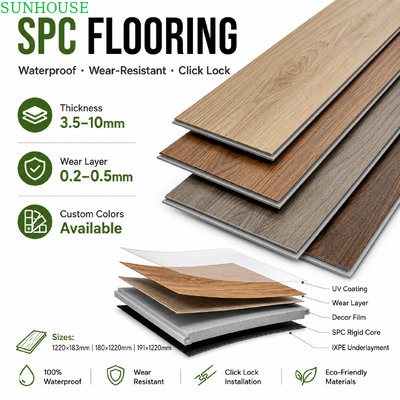

What Is the Basic Structure of SPC Flooring?

A typical SPC click flooring plank consists of multiple functional layers. Each layer performs a specific role, from protecting the decorative surface to improving dimensional stability during temperature changes.

Layer Function Why Buyers Should Care
UV Coating Transparent protective surface treatment above the wear layer. Improves stain resistance, surface protection and cleaning performance.
Wear Layer Transparent abrasion-resistant layer protecting the decorative film. Determines suitability for residential or commercial traffic.
Decorative Film Printed wood grain or stone pattern layer. Creates realistic appearance and market differentiation.
SPC Rigid Core Stone plastic composite layer made from PVC resin and mineral fillers. Affects weight, stability, impact resistance and locking strength.
IXPE / EVA Underlay Attached acoustic and cushioning backing. Improves walking comfort and reduces impact sound.

1. UV Coating: More Than Just Surface Protection

Many buyers focus on wear layer thickness but overlook the importance of UV coating. The UV coating is designed to improve the resistance of the flooring surface against daily contamination, scratches and cleaning chemicals.

For commercial applications such as offices, hotels and retail stores, surface maintenance performance can directly influence long-term customer satisfaction.

2. Wear Layer: The First Defense Against Daily Traffic

The wear layer is one of the most commonly compared SPC flooring specifications. Common options include 0.3mm, 0.5mm and 0.7mm.

Wear Layer Typical Application
0.3mm Residential bedrooms, apartments and normal traffic areas
0.5mm Hotels, offices, retail stores and commercial renovation projects
0.7mm High traffic commercial environments requiring additional protection

Professional buyers should select wear layer according to actual usage conditions instead of simply choosing the thickest option.

3. SPC Core Density: Why Two 5mm Floors Can Perform Differently

The rigid core is the most important structural component of SPC flooring. Although two products may have the same thickness, their performance can differ because of different material formulas and density levels.

Core density influences:

  • Dimensional stability during temperature changes
  • Locking system strength
  • Impact resistance
  • Overall weight per square meter
  • Flooring installation experience

For bulk purchasing, checking product weight, core composition and production consistency is important because these factors directly affect customer feedback after installation.

4. Click Lock System: A Small Detail That Determines Installation Quality

The click locking profile is another critical area often ignored during product comparison. A high-quality locking system requires accurate milling dimensions and stable core strength.

Common problems caused by poor locking quality include:

  • Visible gaps between planks
  • Broken tongue and groove edges during installation
  • Noise caused by unstable connection
  • Reduced service life in high traffic areas

How Professional Buyers Evaluate SPC Flooring Quality

Inspection Item Purpose
Surface Finish Check texture realism, scratch resistance and cleaning performance.
Core Weight Compare material density and structural consistency.
Locking Strength Ensure reliable installation performance.
Backing Material Evaluate acoustic comfort and installation requirements.

Conclusion: Choose SPC Flooring by Structure, Not Only Appearance

For distributors and project buyers, a reliable SPC flooring supplier should provide clear technical specifications including thickness, wear layer, core structure, locking system, backing options and quality control information.

Understanding the internal construction allows buyers to compare products accurately and select SPC flooring that matches different market requirements.

B2B Purchasing Tip: Before placing a bulk order, always compare complete flooring construction rather than comparing only thickness and price.
